Linearly polarized wave Circularly polarized wave
Polarization Switch

Product description

・Linearly polarized wave Circularly polarized wave Polarization Switch This product is an instrument that enablesMeasurement in 4 patterns(A,B,C and D) without replacing the waveguide device.

In the past,measurement was performed by replacing straight waveguides,twisted waveguides, and the like.

This product can switch the external signal electrically by internal control
without replacing the waveguide device.

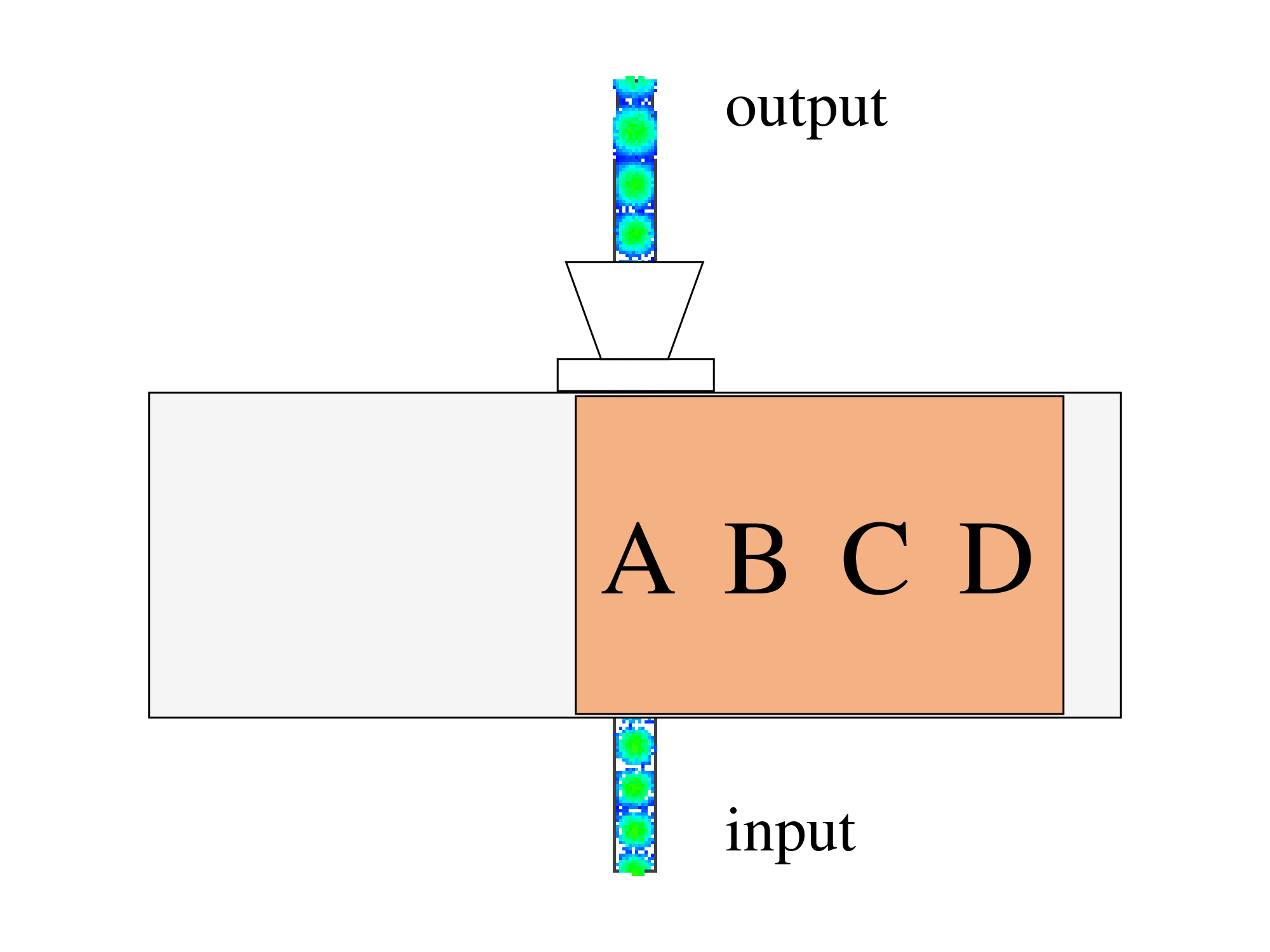

A, B, C, and D stnad for vertical polarization, horizontal polarization, right circular polarization, and left circular polarization, respectively.

For any questions or inquiries about the product, please contact us via the inquiry form or phone at 0422-52-0167.Custom orders are also available, so please feel free to consult with us.
直線偏波円偏波切替スイッチ(*本品は3チャンネル) Linearly polarized wave Circularly polarized wave Polarization Switch

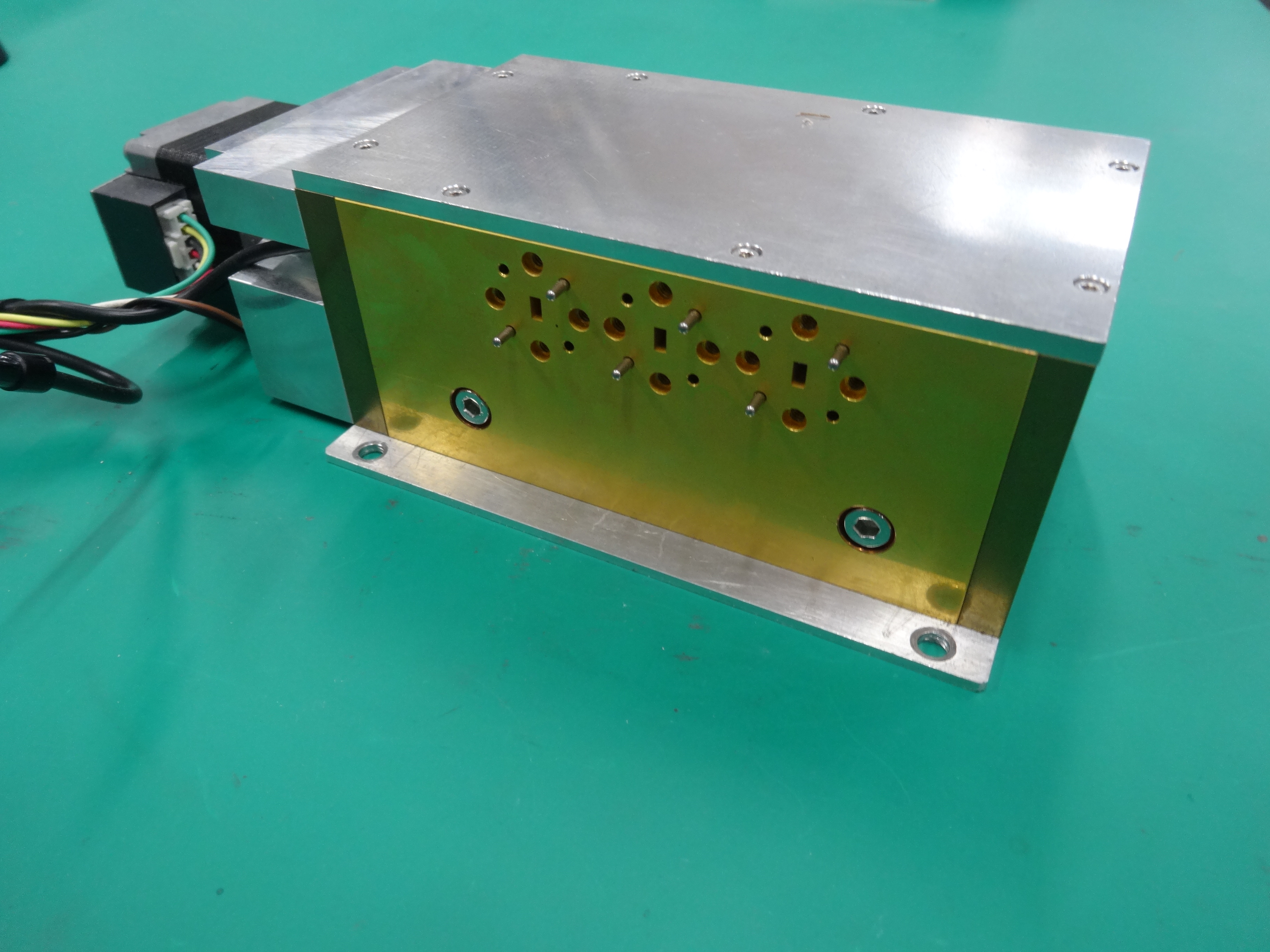

(*This is 4 channels.) 【完成商品例】直線偏波円偏波切替スイッチ

Linear polarization circular polarization switching switch
Internal structure


　　　

Inventory list

For product inquiries, please contactContact Us、or call 0422-52-0167.
Waveguide size Transmission frequency
(GHz)		 flange
WR inside diameter
(mm)
A × B
WR-28 7.110×3.560 26.5 - 40.0 UG381,UG599
WR-22 5.690×2.850 33.0 - 50.5 UG383
WR-19 4.780×2.390 40.0 - 60.0 UG383
WR-15 3.759×1.880 50.5 - 75.0 UG385
WR-12 3.100×1.550 60.0 - 90.0 UG387
WR-10 2.540×1.270 75.0 - 110 UG387
WR-8 2.030×1.020 90.0 - 140 UG387
WR-6 1.651×0.825 110 - 170 UG387P
WR-5 1.295×0.648 140 - 220 UG387P
WR-4 1.092×0.546 170 - 260 UG387P
WR-3 0.864×0.432 220 - 330 UG387P
WR-2.8 0.711×0.356 260 - 400 UG387P
WR-2.2 0.559×0.279 330 - 500 UG387P








Example of measurement data

Polarization Switcher Measurement Data
Frequency range WR5 140GHz ～ 170GHz
switching speed 1 second
Power consumption 15W
Supply voltage DC24V
Specification temperature range 5℃ ～ 40℃
operating method Manual operation/Auto operation(RS232C)
※We can manufacture according to your requests in terms of frequency range, material, etc.
