Polarized wave separator

・Polarized wave separator Polarization wave separator is classfied into two types:circular polarization wave
separator and linear polarization wave separator.

As the unit is composed entirely of metallic components, it can be used in ultra-low temperature environments (down to ～1K).

We manufacture products for a wide range of frequencies, and we also offer custom designs based on your specific requirements.

For any questions or inquiries about the product, please contact us via the inquiry form or phone at 0422-52-0167.Custom orders are also available, so please feel free to consult with us.
【WR28】Polarization Divider [Example]Circular Polarizer 【Example】Circular Polarizer 【Example】Linear Polarization Separator

System

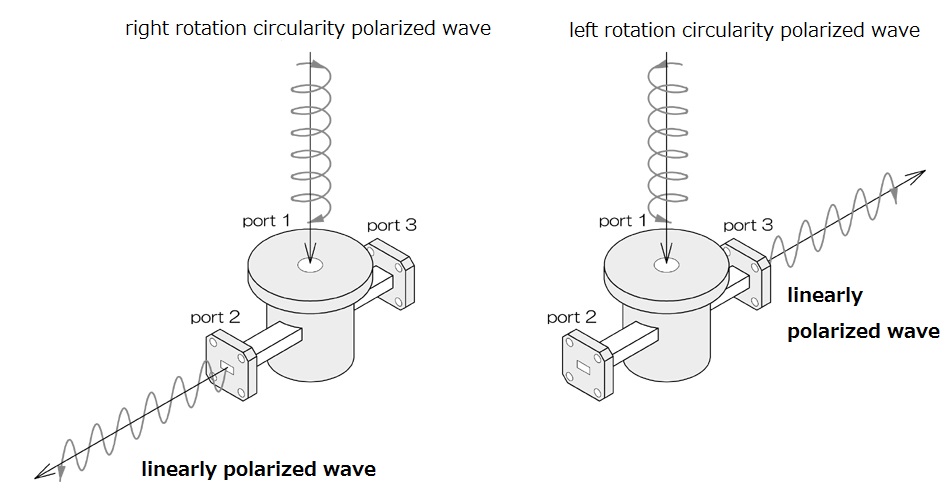

Circular Polarizer
円形導波管がport1、それが分岐してport2とport3がある。port1に円偏波を入力すると偏波の回転方向によってport2かport3から出力される。可逆である。詳しくは表を参照。
input port input polarized wave output port output polarized wave
Port1 right rotation circularity
polarized wave(CW)		 → port2 linearly polarized wave
Port1 left rotation circularity
polarized wave(CCW)		 → port3 linearly polarized wave
Port1 linearly polarized wave → port2 & port3 linearly polarized wave
Port2 linearly polarized wave → port1 right rotation circularity
polarized wave(CW)
Port3 linearly polarized wave → port1 left rotation circularity
polarized wave(CCW)
Example of performance (WR28)
Frequency range 30GHz ～ 34GHz
Insertion loss 0.6dB
Isolation 30dB

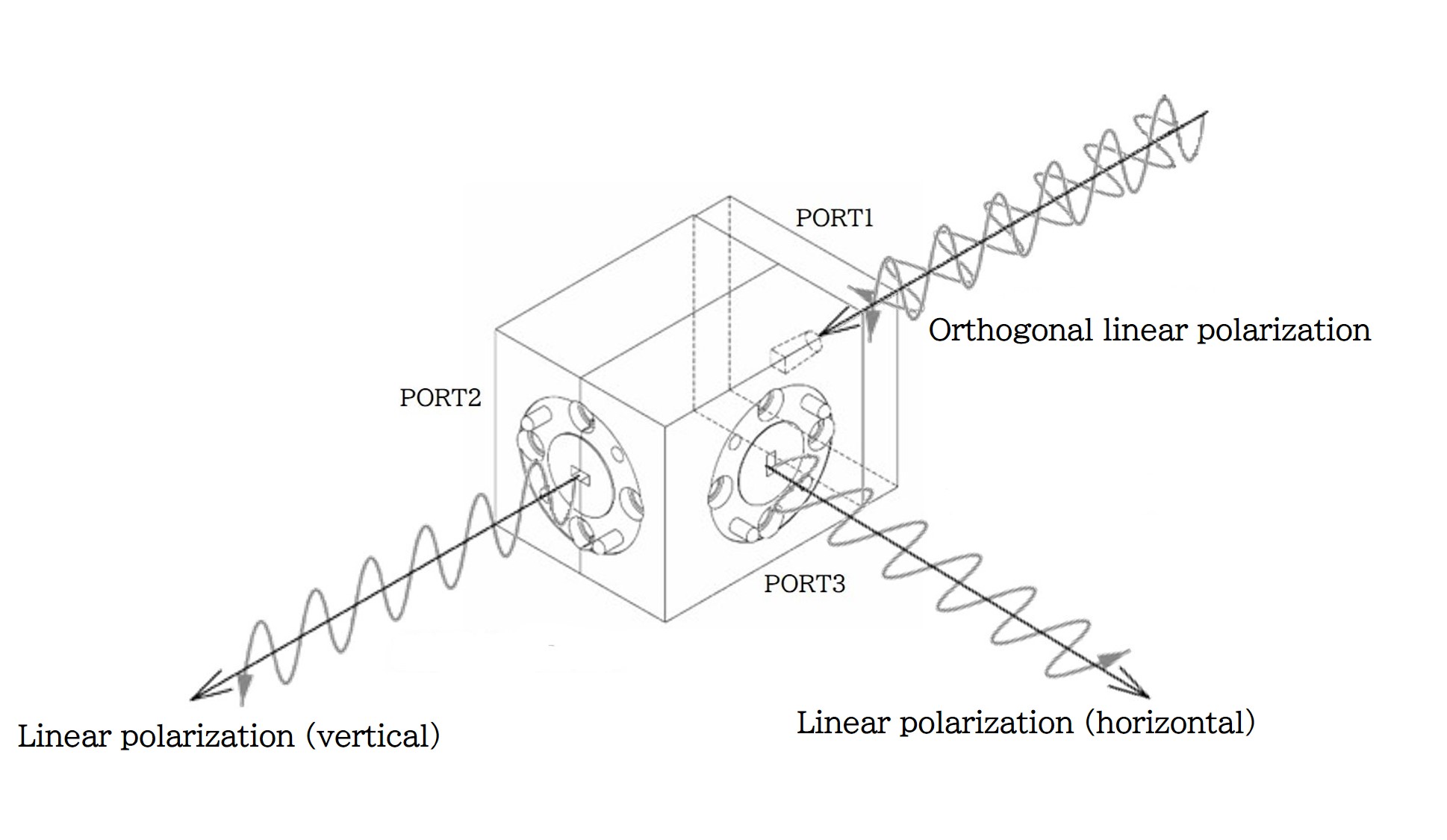

Linear Polarization Separator 　
input port input polarized wave output port output polarized wave
Port1 Orthogonal linear
polarization
 → port2 Linear polarization
(vertical)
Port1 Orthogonal linear
polarization
 → port3 Linear polarization
(horizontal)
Port2 Linear polarization
(vertocal)
 → port1 Orthogonal linear
polarization
Port3 Linear polarization
(horizontal) 		→ port1 Orthogonal linear
polarization

Waveguide list

Waveguide Size Frequency
(GHz)		 Flange
WR Internal Dimension(mm)
A × B		 Internal Dimension(mm)
φ
WR-28 7.110×3.560 φ6.35 33 - 38.5 UG381,UG599
WR-22 5.690×2.850 φ5.56 38.5 - 43 UG383
WR-19 4.780×2.390 φ5.33 40 - 43 UG383
WR-15 3.759×1.880 φ4.19 50 - 58 UG385
WR-12 3.100×1.550 φ3.18 68 - 75 UG387
WR-10 2.540×1.270 φ2.84 75 - 88 UG387
WR-8 2.030×1.020 φ2.26 90 - 115 UG387
WR-6 1.651×0.825 φ1.85 110 - 140 UG387P
WR-5 1.295×0.648 φ1.47 140 - 220 UG387P
WR-4 1.092×0.546 φ1.245 170 - 260 UG387P
WR-3 0.864×0.432 φ0.99 220 - 330 UG387P

※Circular port diamerters changes for frequency range

Drawing

Polarization Divider(WR28)

port1の口径がφ、port2,3の口径がA×Bです。

Linear Polarization Separator(WR10)

Flange

UG381,383はFlangeの径がφ28.58。UG385,387はφ19.05。UG387-Pはφ19.05でピン穴が２つ増えます。UG599は角Flangeで□19.05です。
