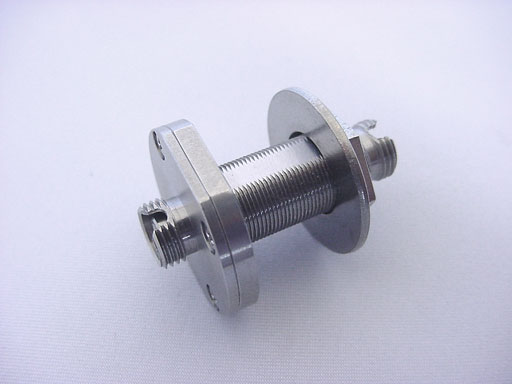

Characteristic

This article is the field through which can be put on and off with the atmosphere side of flange. We have performance less than connection loss 1dB in single mode 1.3 µ zone. This is compatible for FC type optical connector plug .
And single flange can install several connectors.




Specification

Connector type

FC type

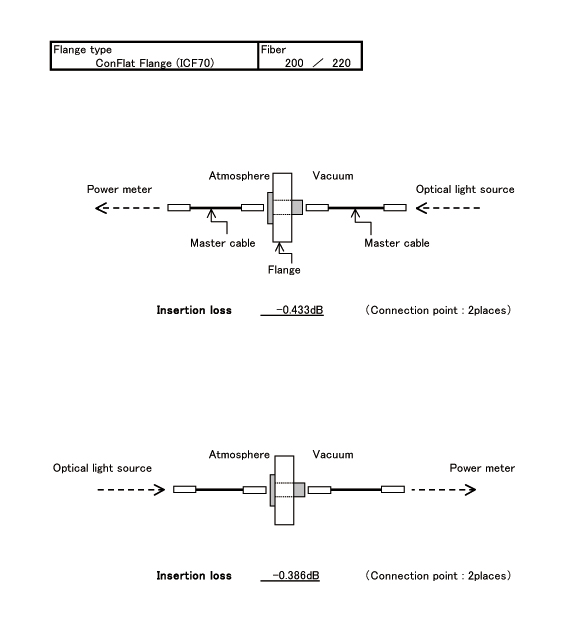

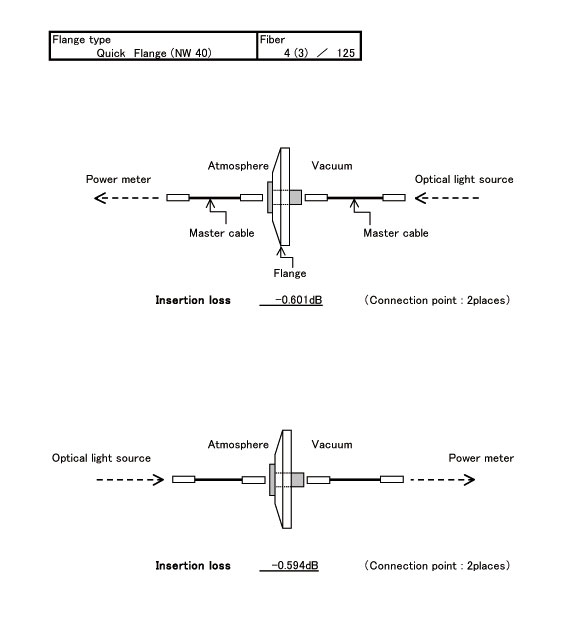

Insertion loss

(1.3µSM)       ≤-1dB
(0.85µMM)
     ≤-1dB

Materials

Stainless steel

Use wavelength (µm)

0.63,0.85,1.3,1.55

Helium leak rate

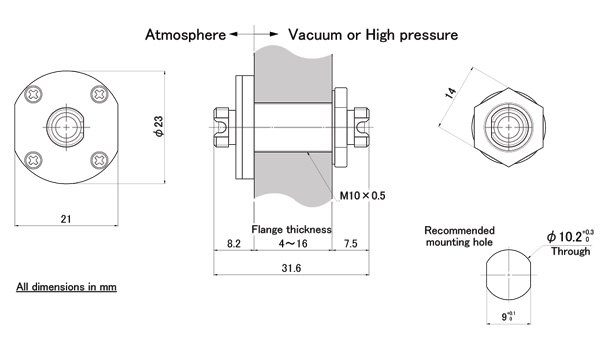

Mechanical Dimensions



MM





630µSM

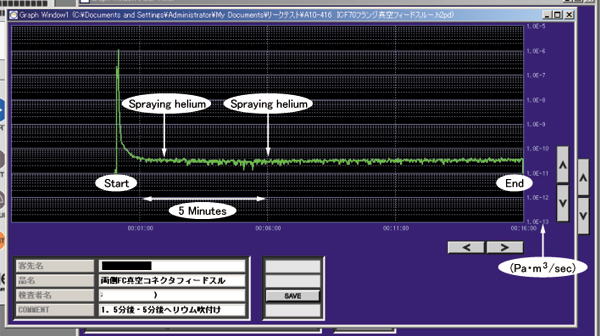

Herium Leak rate







Custom Order

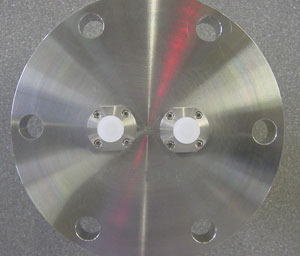

<2 Port , Ø130 Flange>

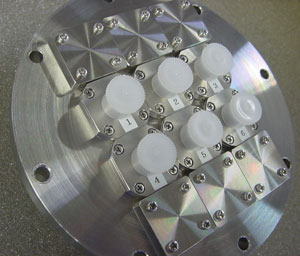

<6˜12 Port , Ø110 Flange>
