3-axes Pigtail Station Specification

This machine is developed for automation alignment of LD, PD and fiber.

1) xyz stage

xyz stage is consist of highly precise ball screw and highly precise slide rail, and the max speed of table is 1mm/sec.

x axis stroke		+/- 10mm
	resolution	0.02 micron
	max speed	1mm/sec
y axis stroke		+/- 5mm
	resolution	0.02 micron
	max speed	mm/sec
z axis stroke		1mm/sec
	resolution	1 micron
	max speed	20mm/sec

2) sample holder

mechanical cramp

3) motor controller

controlable axis	3 axes
maximum application frequency	16 kHz
function	manual, auto, peak power search

4) heater controller

max controllable temperature	150 degrees C
control	PID

5) lighting

lighting for package

optical fiber lighting

6) line sensor

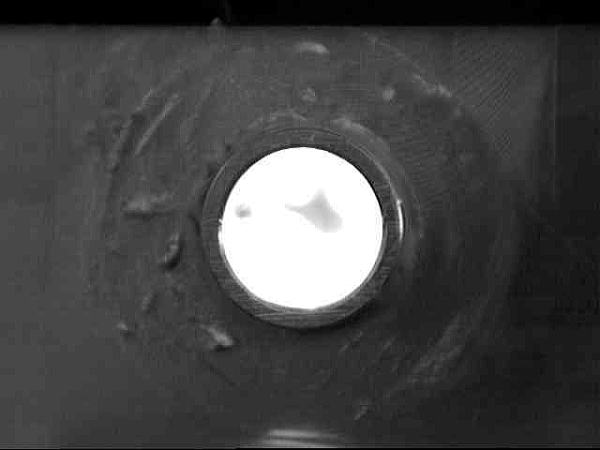

7) monitor ( CCD camera for package hole)

size	9 inch, B/W

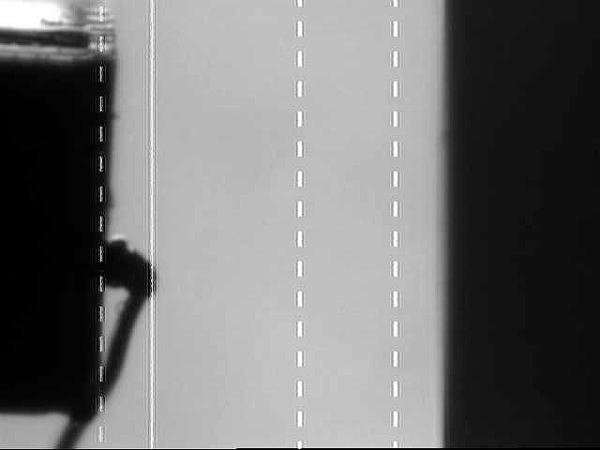

8) monitor ( CCD camera for LD, PD and fiber )

size	9 inch, B/W

9) image processing system

CCD camera	400,000 pixels
lens	x0.5
recognition speed	0.5 seconds
function	calculation of package hole's center

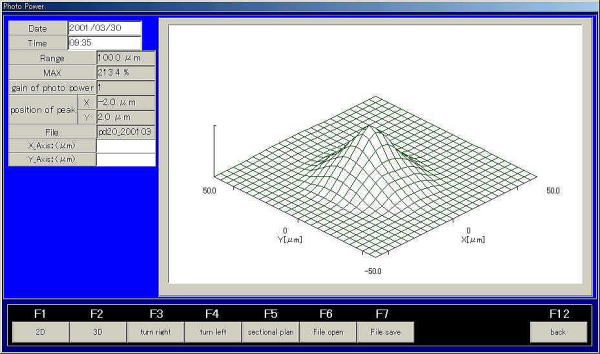

10) laser peak power meter

band range	800nm - 1600nm
sensitivity	-60dBm

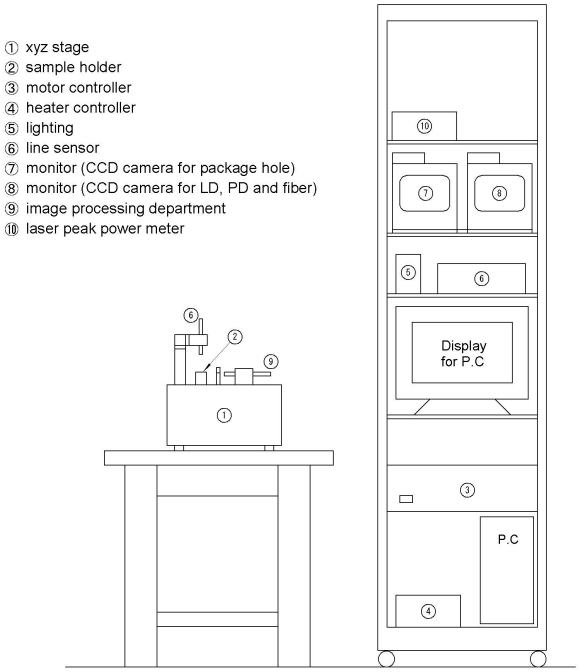

Constitution

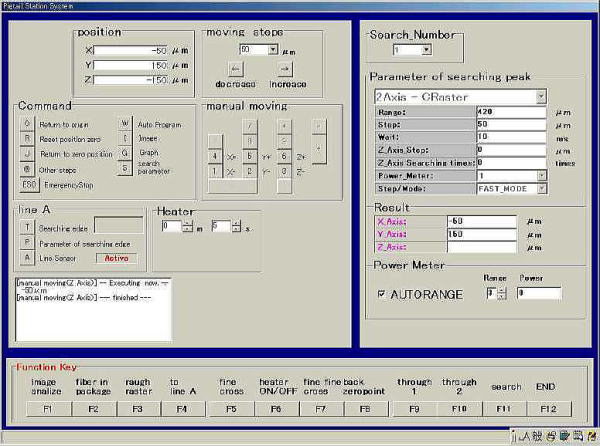

Main Window
