An optical connector
for a vacuum
|
Characteristic
This article is the field
through which can be put on and off with the
atmosphere side of flange. We have performance less
than connection loss 0.3dB in single mode 1.3
µ zone. This is compatible for FC type optical
connector plug .
And single flange can install several
connectors.
|
Specification
|
Connector
type
|
FC type
|
|
Connection
loss
|
(1.3µSM) 2dB以下
(0.85µMM) 0.5ｄB以下 |
|
Materials
|
Stainless
steel
|
|
Use wavelength
(µ)
|
0.63,0.85,1.3,1.55
|
|

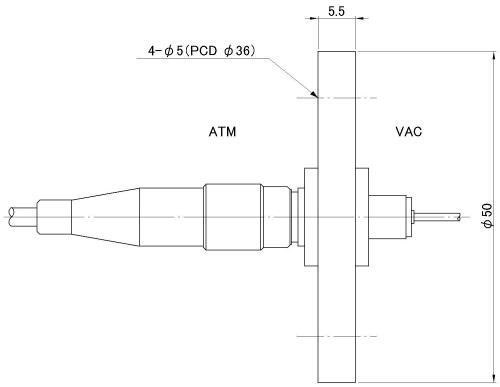

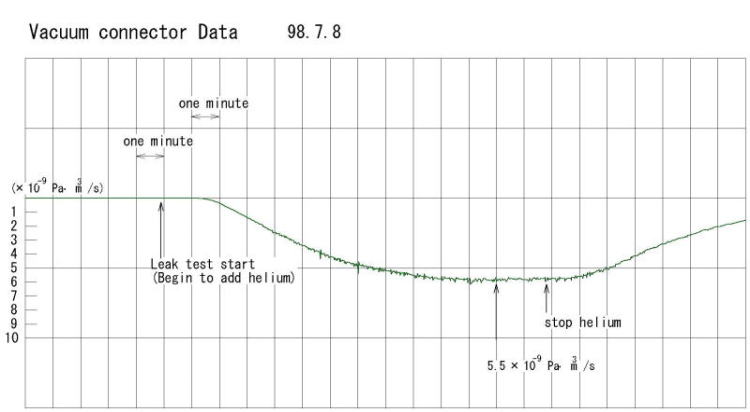

Leak
rate
|
|
|
It can be equivalent to IC flange, flange for
quick, release coupling for a coupling to
clamp.
|
850LB Fiber
1300SM
 |
A~B
-1.56
-1.55
-1.68
-1.57
-1.61
B~A
-1.76
-1.78
-1.80
-1.74
-1.73
|
Connection loss
date

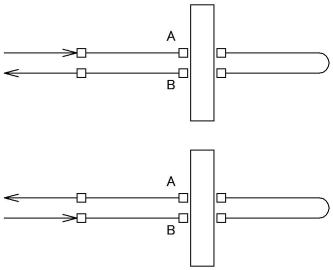

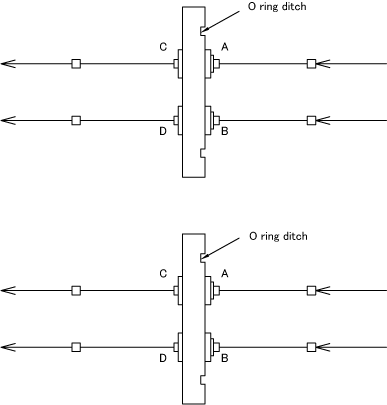

A type 1300SM 9/125 1.3µdata
|
Connection
point
|
2 places
|
|
one place
loss
|
0.8dB
|
|
minimum
value
|
-1.56
|
|
highest
value
|
-1.80
|
|
|
A type
transformation (bulk head type)
Both sides FC
|
|
A~C
-0.30
-0.30
-0.31
-0.33
-0.30
B~D
-0.36
-0.37
-0.38
-0.37
-0.37
C~A
-0.26
-0.27
-0.26
-0.25
-0.27
D~B
-0.25
-0.26
-0.25
-0.27
-0.25
|
Connection loss
date
50/125 0.85µ
data
|
Connection
point
|
2 places
|
|
one place
loss
|
0.15dB
|
|
minimum
value
|
-0.25dB
|
|
highest
value
|
-0.38dB
|
|
|
